About this item:

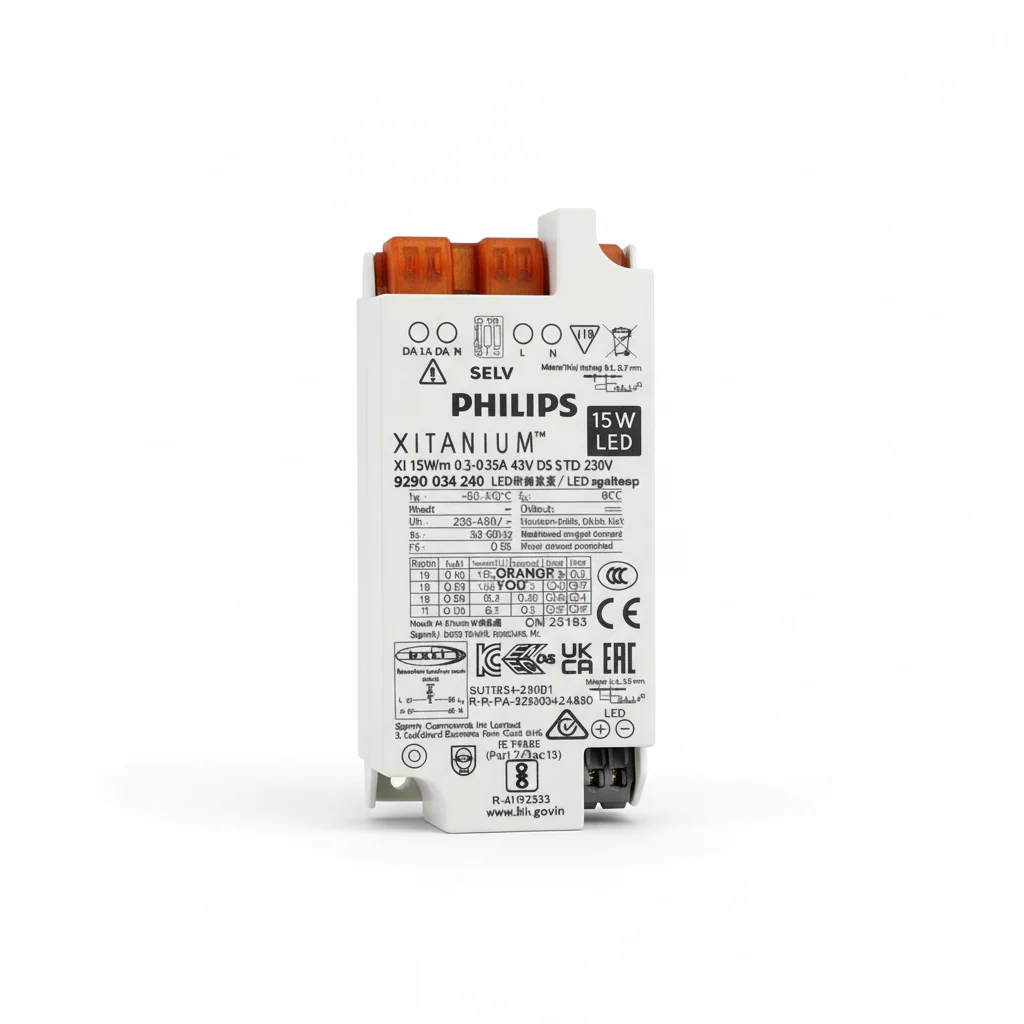

Philips Xi 15W/m 0.2–0.35A 42V DS S TD 230V LED Driver (929003424980)
Product Description
The Philips Xitanium Xi 15W/m LED Driver is a professional-grade constant-current driver engineered for LED COB solutions in both built-in and independent applications. It is ideal for downlights, spotlights, and track lighting, delivering stable and efficient performance while enhancing flexibility in luminaire design.
Specification Table
| Parameter | Specification |
|---|---|
| Product Name | Philips Xi 15W/m 0.2–0.35A 42V DS S TD 230V LED Driver |
| Brand | Philips |
| Series | Xitanium LED Drivers |
| Model / Order Code | 929003424980 |
| Product Type | DALI LED Driver (Constant Current) |
| Nominal Output Power | 15 W/m |
| Output Current | 0.20 A / 0.25 A / 0.30 A / 0.35 A (Selectable via DIP switch) |
| Output Voltage Range | 30–42 V DC |
| Max Open Circuit Voltage (DC) | 60 V |
| Dimming Protocol | DALI 2.0 (1–100 % dimming) |
| Input Voltage | 220–240 V AC, 50/60 Hz |
| Power Factor (PF) | ~0.95 |
| Total Harmonic Distortion (THD) | <20 % |
| Efficiency | ~86–87 % |
| Output Current Ripple | ≤ 4 % |
| Driver Type | Constant Current, Selectable Output |
| Safety / Protection Class | IEC Class I/II |
| Operating Temperature | -20 °C to +50 °C ambient |
| Maximum Case Temperature (Tcase‑max) | 80 °C |
| Relative Humidity | 10–90 % non-condensing |
| Housing / Color | Compact Mini Shape / White |
| Dimensions | ~97 × 43 × 30 mm |
| Weight | ~90 g |
| Lifetime | Up to 50,000 hours |
| Protection Rating | IP20 (Indoor Use) |
| Applications | Downlights, Spotlights, Track Lights (Indoor) |
| Compliance / Standards | DALI 2.0, EMI & safety standards |
Equipped with DALI 2.0 digital dimming, this driver allows wired dimming from 1–100 % for precise control over illumination levels. Its selectable output current via DIP switch ensures compatibility with various LED luminaires, while low output current ripple provides flicker-free lighting. Compact and reliable, the driver offers high EMI performance, ensuring smooth integration into modern indoor lighting systems. With a rated 50,000-hour lifetime, it provides long-term durability and peace of mind.
Key Benefits
-
DALI 2.0 digital dimming for smooth wired control
-
Selectable output current for multiple luminaire designs
-
Low ripple output ensures flicker-free illumination
-
Compact form factor enables minimization of luminaire size
-
High EMI performance for easy integration
-
Reliable long-life operation with proven durability
This driver is perfect for lighting designers and engineers requiring flexible, reliable, and compact LED driver solutions for indoor professional lighting.
