About This Item

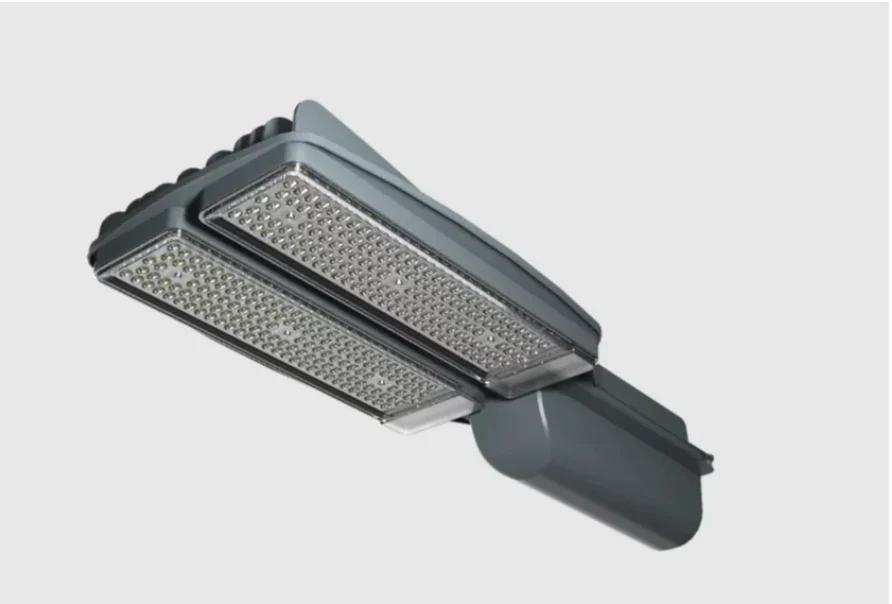

Philips BRP505 LED238 CW R3C PSU S1 SPD — 170W LED Street Light | Cool White | Energy-Efficient Outdoor Lighting
Specifications
| Specification | Details |
|---|---|
| Product codes | BRP505 LED238 CW R3C PSU S1 SPD |
| Housing Material | Aluminium pressure die cast |
| Flux packages (lm) | 23800lm |
| CCT / Color (flux-package based) | 4000K |
| System efficiency | Up to 140 lm/W |
| System wattage | Nominal 170W |
| Net Weight (Piece) | 4.00 kg |
| Ambient temperature range | -10 to +50 °C |
| IP Rating | IP66 |
| Warranty Period | 5-Years |
| IK Rating | IK10 |
| Mounting device | Spigot for diameter 60 to 76 mm |
| Protection class IEC | Safety class I |
| SDCM | < 5 |
| CRI (Typ.) | 70 |
| LED Lifetime @ L70B50 | 50,000 hour(s) |
| Application Matrix | A2 |
| Target light distribution | Street |
| Lens & Optical cover | PC window |
| Input voltage | 220–240V, 50Hz |
| Operating Voltage (CLO) | 120–270V |
| Power Factor (full load) | 0.95 |
| Power Factor (half load) | 0.9 |
| THD% | ≤10% (at full load) |
| Inbuilt surge protection | 4kV |
| HV Cut-off @ 325V / 440V protection (8 hrs) | Yes |
| Low-voltage cut-off | Yes |
| EMI / EMC compatibility | Yes |
| Serviceability (Electrical) | Driver & SPD |
Upgrade your outdoor lighting infrastructure with the Philips BRP505 LED Street Light – 170W Neutral White, engineered for high-performance, durability, and energy efficiency. Featuring advanced R3C optics, robust power supply (PSU S1), and integrated surge protection (SPD), this luminaire is designed to deliver reliable illumination for urban roads, highways, industrial zones, and large outdoor spaces.
Its neutral white 4000K light output ensures optimal visibility and safety, while Philips' proven LED technology provides significant energy savings and low maintenance over time. Backed by a trusted global brand, this street light is a reliable, long-term lighting solution for both public and private projects.
Key Features:
-
High-Efficiency 170W LED Output
-
Neutral White (4000K) Color Temperature
-
R3C Precision Optics for Wide Beam Spread
-
Built-in SPD (Surge Protection Device)
-
Robust PSU S1 Power Supply
-
Die-cast Aluminum Housing for Durability
-
Long Lifespan with Minimal Maintenance
Benefits:
-
Energy-Efficient: Reduces electricity costs significantly
-
Low Maintenance: Long life with reliable performance
-
Improved Visibility: Neutral white light enhances clarity
-
Safe & Durable: IP-rated body with surge protection
-
Smart Investment: Ideal for long-term outdoor projects
Ideal For:
-
Highways and Main Roads
-
City Streets and Residential Areas
-
Industrial Zones and Parking Lots
-
Campus and Municipal Lighting
-
Commercial Outdoor Premises
Philips delivers cutting-edge technology combined with durability and performance in the BRP505 LED238 NW Street Light. Choose this model for a cost-effective, powerful, and sustainable lighting solution built for modern urban environments.
