$18.07The Story
About This Item

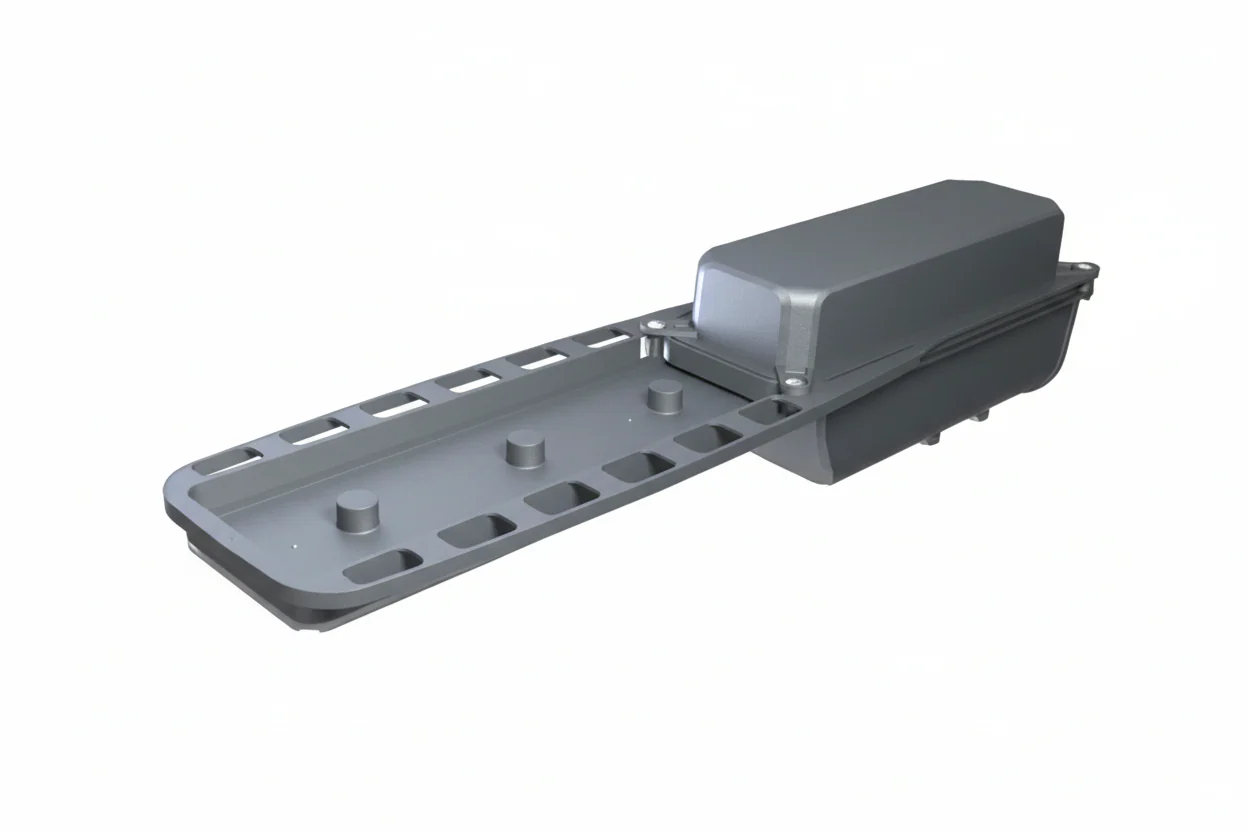

Philips BRP501 LED098 CW R3C PSU S1 SPD — 70W LED Street Light | Cool White | Energy-Efficient Outdoor Lighting
Specifications
| Specification | Details |
|---|---|
| Product codes | BRP501 LED098 CW R3C PSU S1 SPD |
| Housing Material | Aluminium pressure die cast |
| Flux packages (lm) | 9800lm |
| CCT / Color (flux-package based) | 5700K |
| System efficiency | Up to 140 lm/W |
| System wattage | Nominal 70W |
| Net Weight (Piece) | 1.700 kg |
| Ambient temperature range | -10 to +50 °C |
| IP Rating | IP66 |
| Warranty Period | 5-Years |
| IK Rating | IK10 |
| Mounting device | Spigot for diameter 60 to 76 mm |
| Protection class IEC | Safety class I |
| SDCM | < 5 |
| CRI (Typ.) | 70 |
| LED Lifetime @ L70B50 | 50,000 hour(s) |
| Application Matrix | A2 |
| Target light distribution | Street |
| Lens & Optical cover | PC window |
| Input voltage | 220–240V, 50Hz |
| Operating Voltage (CLO) | 120–270V |
| Power Factor (full load) | 0.95 |
| Power Factor (half load) | 0.9 |
| THD% | ≤10% (at full load) |
| Inbuilt surge protection | 4kV |
| HV Cut-off @ 325V / 440V protection (8 hrs) | Yes |
| Low-voltage cut-off | Yes |
| EMI / EMC compatibility | Yes |
| Serviceability (Electrical) | Driver & SPD |
The Philips BRP501 LED098 CW R3C PSU S1 (70W) is a reliable, high-efficiency LED street and area lighting solution designed to deliver bright, uniform illumination with significantly lower power consumption than conventional street lights.
Built with durable outdoor-grade housing and a dependable Philips driver, it ensures long service life, reduced maintenance, and consistent lighting performance in roads, campuses, residential areas, industrial compounds, and parking zones.
Key Features
-
High-efficiency 70W LED technology
-
Cool white light for clear visibility
-
Robust weather-resistant luminaire design
-
Stable, high-performance Philips PSU driver
-
Optimized optics for uniform light spread
Ideal For
-
Public streets and roadways
-
Housing societies & township roads
-
Industrial and factory perimeters
-
Parking areas and campuses
-
Pathways, parks, & common areas
Benefits
-
Saves energy vs. sodium/metal halide
-
Reduces maintenance and downtime
-
Improves night-time safety & visibility
-
Lower long-term operating costs
-
Trusted Philips quality and reliability
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
